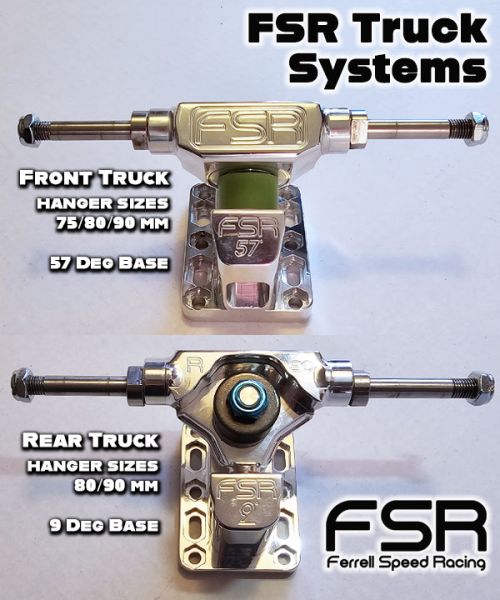

FSR - Ferrell Speed Racing - Truck Complete Truck Solutions 57d and 9d - single or pair
Sk8Kings is stoked to roll out the new FSR - Ferrell Speed Racing - truck system solutions! Adding to the top - literally - the highly-tuned baseplates which serve as the PERFECT basis for the FSR Truck Series - are now available for pre-order. The FSR Baseplates feature a standard size 3/8" kingpin - which is far above "standard" in blue anodized Titanium steel and with Ti hardware to match. This kingpin system design offers quick-release bushing change capability! No more worries - top of the line - Luxe! FSR is providing ground-breaking technology that not only fills the gap for classic designs, but will also take your race kit far into the future.
Full Truck features
Baseplates:
- Polished aerospace aluminum
- FSR styling with logo and angle engraving
- Optimized CNC design
- Anodized titanium kingpin
- High baseplate contact, tight tolerance for kingpin (less wedging)
- Spherical bearing pivot
- Machined on a five-head multi-axis CNC
- Hollowed and lightened rear baseplate
- Front angle 57 degrees
- Rear angle 9 degrees
- Removable kingpin window front (clearance to push kingpin out for adjustment)
- Removable kingpin window rear (clearance to push kingpin out for adjustment)
- Large flat bushing mount front and rear
- Machined for FSR inverted plug bushings - standard fit with Riptide .60 offerings
- Multi-position mounting holes for FSR boards (series in development)
- FSR Pinlock holes in baseplate (optimal for FSR Pinlock wedge risers)
- Corresponding FSR Pinlock wedges (available in various degrees and bonus mounting holes for toe stops)
- Compatible with most Radikal Truck hangers
Hangers:
- Polished aerospace aluminum
- FSR styling with logo and size engraving
- Complete CAD RKP ground-up redesign
- Available in 80mm and 90mm hangers
- Heat-treated 8mm axles with 5/16 nuts
- Aerospace aluminum axle spacers 3-6-10mm
- 80mm truck with axles is 92mm-112mm
- 90mm truck with axles is 102mm-122mm
- Optimized rake with front 12mm-rear 9mm
- Thick hanger spherical press in shoulder
- Extra deep spherical to kingpin relief
- High-angle, no-lube spherical
- Large flat bushing surfaces
- Extra deep bushing washer to hanger relief
- Wide reinforced hanger spine with logo
- Cut for extra wheel clearance
- Close tolerance pivot to spherical
- Thick pivot shoulder
Optional Upgrade - Custom Bushings - see options at checkout
Sk8Kings Team Rider Approved! Fifteen-year-old racing phenom - Kelley Apanowicz, rides FSR Baseplates with Radikal Truck Hangers - winning combo! Kelley set the ISSA 100-Cone World Record CLEAN in 2025 riding this combo. Richy Carrasco (Top 25 Pro in the ISSA World Ranking) and Paul Chestnut (Top 5 Masters in the ISSA World Ranking) - rode the FSR full truck solutions at Worlds Brazil 2025! Who's next? Stay tuned!
About FSR: Ferrell Speed Racing was founded by Scott Ferrell - a forward-thinking developer with solid roots in aerospace engineering, carbon fiber technology and expertise in snowboard and skateboard racing for decades. All products are proudly made in the U.S.A. at some of the finest production houses in the country.
